CNC Turning: 2-Axis

st10rangle

ST-10

Product Overview

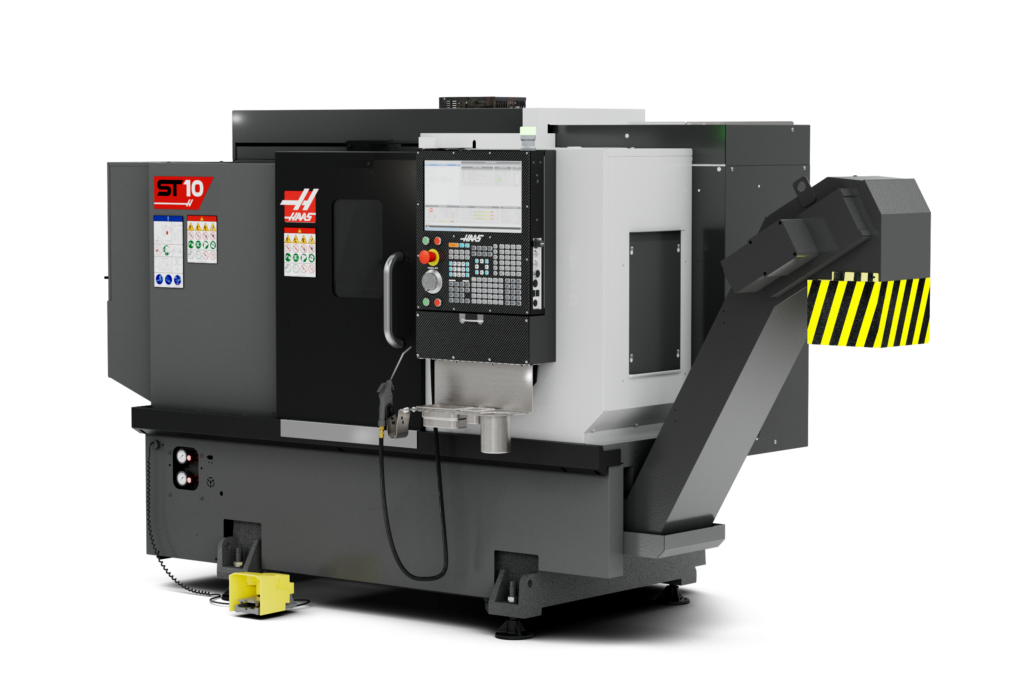

CNC Lathe; 14" x 16" (356 x 406 mm) max capacity, 1.75" (44 mm) bar, 16" (406 mm) swing, 15 hp (11.2 kW) vector drive, 6000 rpm, A2-5 spindle, 6.5" (165 mm) chuck, 12-station bolt-on turret, 15" color LCD monitor, memory lock keyswitch, USB port and rigid tapping. Standard toolholder kit included with BOT or Hybrid turret.


Specifications

ST-10 - Compare to:
ST-10
SWING DIAMETERS.A.E.METRIC
Over Wedge16.5 " 419 mm
Max Part Diameter16.5 " 419 mm
CAPACITIESS.A.E.METRIC
Chuck Size6.5 " 165 mm
Max Cutting Diameter (varies with turret)14.0 " 356 mm
Max Cutting Length (without workholding)16 " 406 mm
Bar Capacity1.75 " 44 mm
TRAVELS & FEEDRATESS.A.E.METRIC
X Axis7.88 " 200.2 mm
Z Axis16 " 406 mm
Rapids on X1200 in/min 30.5 m/min
Rapids on Z1200 in/min 30.5 m/min
Max Thrust X3300 lb 14679 N
Max Thrust Z3300 lb 14679 N
SPINDLES.A.E.METRIC
Max Rating15 hp 11.2 kW
Max Speed6000 rpm 6000 rpm
Max Torque75 ft-lb @ 1300 rpm 102 Nm @ 1300 rpm
Spindle NoseA2-5  A2-5
Spindle Bore ø2.31 " 58.7 mm
TURRETS.A.E.METRIC
Number of Tools12 Stations  12 Stations
OD vs ID ToolsAny Combination (will vary with turret style)  Any Combination (will vary with turret style)
Boring Bar Rear Clearance (from back of turret )0.75 " 19.1 mm
GENERALS.A.E.METRIC
Air Required4 scfm, 100 psi 113 L/min, 6.9 bar
Coolant Capacity30 gal 114 L
