CNC Turning: Y-Axis

st10y

ST-10Y

Product Overview

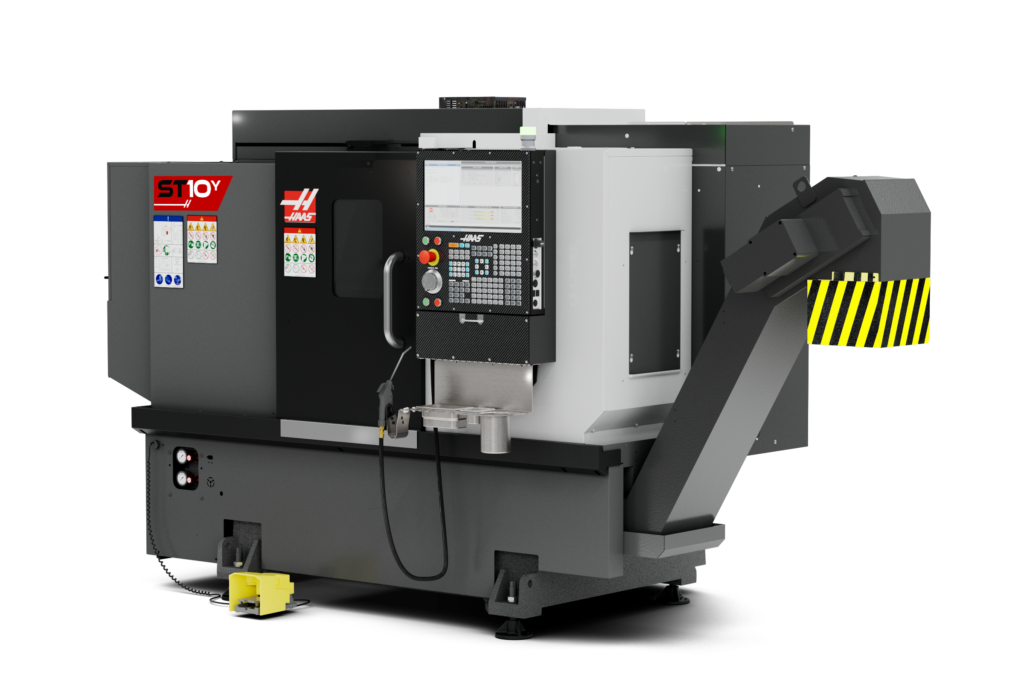

CNC Lathe w/Y Axis; 12" x 16" (305 x 406 mm) max capacity, 1.75" bar, 16" (406 mm) swing, ±2.00" (±50.8 mm) Y-axis travel, 15 hp (11.2 kW) vector drive, 6000 rpm, A2-5 spindle, 6.5" (165 mm) chuck, 12-station VDI turret, high-torque live tooling w/C axis, 15" colour LCD monitor, memory lock keyswitch, spindle orientation, USB port and rigid tapping. Standard toolholder kit included with Hybrid turret.


Specifications

ST-10Y - Compare to:
ST-10Y
SWING DIAMETERS.A.E.METRIC
Over Wedge16.5 " 419 mm
Max Part Diameter16.5 " 419 mm
CAPACITIESS.A.E.METRIC
Chuck Size6.5 " 165 mm
Max Cutting Diameter (varies with turret)12 " 305 mm
Max Cutting Length (without workholding)16 " 406 mm
Bar Capacity1.75 " 44 mm
TRAVELS & FEEDRATESS.A.E.METRIC
X Axis7.88 " 200 mm
Y Axis±2 " ±51 mm
Z Axis16 " 406 mm
Rapids on X472 in/min 12 m/min
Rapids on Y472 in/min 12 m/min
Rapids on Z1200 in/min 30.5 m/min
Max Thrust X2400 lb 10676 N
Max Thrust Y2300 lb 10231 N
Max Thrust Z3700 lb 16458 N
SPINDLES.A.E.METRIC
Max Rating15 hp 11.2 kW
Max Speed6000 rpm 6000 rpm
Max Torque75 ft-lb @ 1300 rpm 102 Nm @ 1300 rpm
Spindle NoseA2-5  A2-5
Spindle Bore ø2.31 " 58.7 mm
Draw Tube Bore ø1.81 " 46.0 mm
MAIN SPINDLE C AXISS.A.E.METRIC
Max Rating5 hp 3.7 kW
Positioning (±)0.01 ° 0.01 °
Brake Clamp Force1000 lb 4448 N
Brake Diameter14.4 " 366 mm
Control TypeInterpolated Motion and Control  Interpolated Motion and Control
TURRETS.A.E.METRIC
Number of Tools12 Stations  12 Stations
OD vs ID ToolsHybrid 6 BOT/6 VDI  Hybrid 6 BOT/6 VDI
Boring Bar Rear Clearance (from back of turret )0.75 " 19.1 mm
LIVE TOOLINGS.A.E.METRIC
Max Speed6000 rpm 6000 rpm
ToolingVDI40  VDI40
GENERALS.A.E.METRIC
Air Required4 scfm, 100 psi 113 L/min, 6.9 bar
Coolant Capacity30 gal 114 L
