CNC Turning: 2-Axis

st15

ST-15

Product Overview

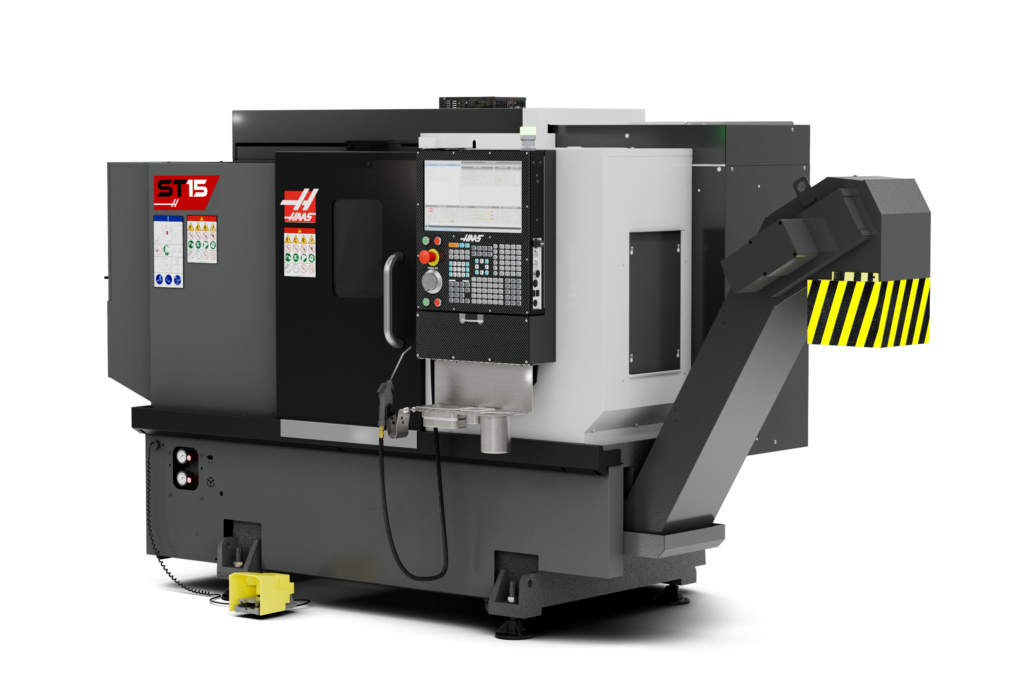

CNC Lathe; 14" x 16" (356 x 406 mm) max capacity, 2.5" (63.5 mm) bar, 16" (406 mm) swing, 20 hp (14,9 kW) vector drive, 4000 rpm, A2-6 spindle, 8.3" (210 mm) chuck, 12-station bolt-on turret, 15" colour LCD monitor, memory lock keyswitch, USB port and rigid tapping. Standard toolholder kit included with BOT or Hybrid turret.


Specifications

ST-15 - Compare to:
ST-15
SWING DIAMETERS.A.E.METRIC
Over Wedge16.5 " 419 mm
Max Part Diameter16.5 " 419 mm
CAPACITIESS.A.E.METRIC
Chuck Size8.3 " 210 mm
Max Cutting Diameter (varies with turret)14.0 " 356 mm
Max Cutting Length (without workholding)16.0 " 406 mm
Bar Capacity2.5 " 63.5 mm
TRAVELS & FEEDRATESS.A.E.METRIC
X Axis7.88 " 200.2 mm
Z Axis16 " 406 mm
Rapids on X1200 in/min 30.5 m/min
Rapids on Z1200 in/min 30.5 m/min
Max Thrust X3300 lb 14679 N
Max Thrust Z3300 lb 14679 N
SPINDLES.A.E.METRIC
Max Rating20 hp 14.9 kW
Max Speed4000 rpm 4000 rpm
Max Torque150 ft-lb @ 500 rpm 203 Nm @ 500 rpm
Spindle NoseA2-6  A2-6
Spindle Bore ø3.50 " 88.9 mm
TURRETS.A.E.METRIC
Number of Tools12 Station BOT  12 Station BOT
OD vs ID ToolsAny Combination (will vary with turret style)  Any Combination (will vary with turret style)
Boring Bar Rear Clearance (from back of turret )0.75 " 19.1 mm
GENERALS.A.E.METRIC
Air Required4 scfm, 100 psi 113 L/min, 6.9 bar
Coolant Capacity30 gal 114 L
