CNC Turning: 2-Axis

st30

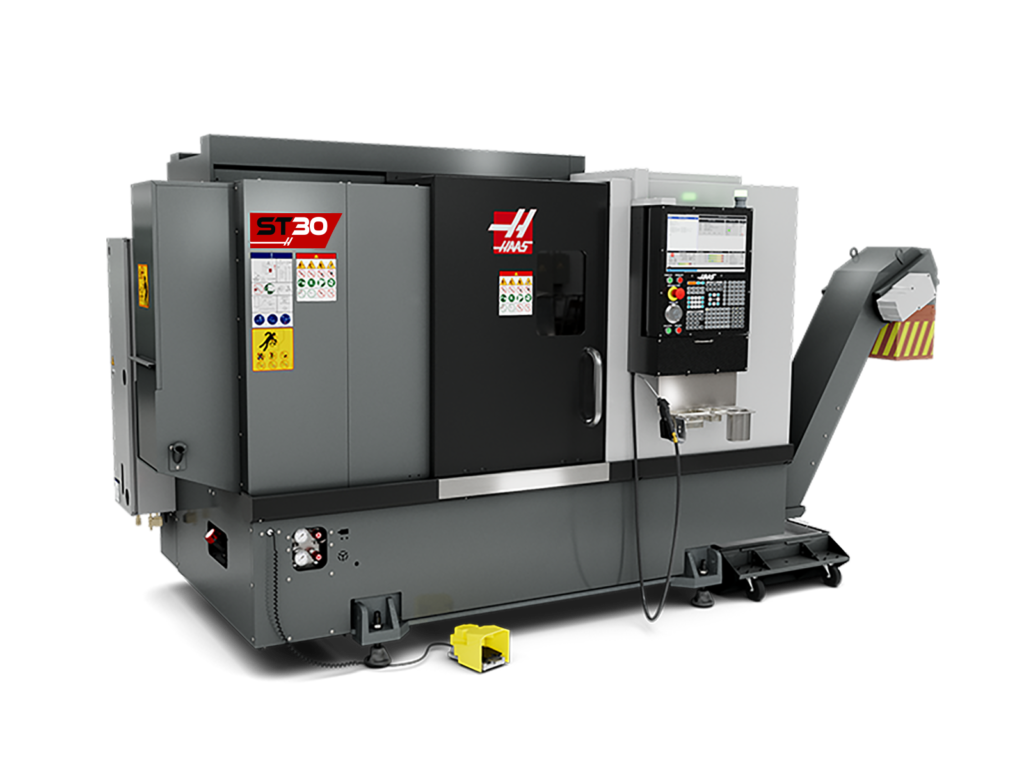

ST-30

Product Overview

CNC Lathe; 21" x 26" (533 x 660 mm) max capacity, 3.0" (76 mm) bar, 31.75" (806 mm) swing, 30 hp (22.4 kW) vector drive, 3400 rpm, A2-6 spindle,10" (254 mm) chuck, 12-station bolt-on turret, 15" colour LCD monitor, memory lock keyswitch, USB port and rigid tapping. Standard toolholder kit included with BOT or Hybrid turret. The Haas Bar Feeder is not compatible with the optional gear-drive spindle.


Specifications

ST-30 - Compare to:
ST-30
SWING DIAMETERS.A.E.METRIC
Over Front Apron31.75 " 806 mm
Over Cross Slide20.75 " 527 mm
Over Tailstock23.0 " 584 mm
CAPACITIESS.A.E.METRIC
Chuck Size10.0 " 254 mm
Max Cutting Diameter (varies with turret)21.0 " 533 mm
Max Cutting Length (without workholding)26.0 " 660 mm
Bar Capacity3.0 " 76 mm
Between Centers30 " 762 mm
TRAVELS & FEEDRATESS.A.E.METRIC
X Axis12.5 " 318 mm
Z Axis26 " 660 mm
Rapids on X945 in/min 24.0 m/min
Rapids on Z945 in/min 24.0 m/min
Max Thrust X4100 lb 18238 N
Max Thrust Z5100 lb 22686 N
SPINDLES.A.E.METRIC
Max Rating30 hp 22.4 kW
Max Speed3400 rpm 3400 rpm
Max Torque300 ft-lb @ 500 rpm 407 Nm @ 500 rpm
Spindle NoseA2-6  A2-6
Max Torque w/opt Gearbox1000 ft-lb @ 150 rpm 1356 Nm @ 150 rpm
Spindle Bore ø3.50 " 88.9 mm
TURRETS.A.E.METRIC
Number of Tools12 Stations  12 Stations
OD vs ID ToolsAny Combination (will vary with turret style)  Any Combination (will vary with turret style)
Boring Bar Rear Clearance (from back of turret )4.0 " 102 mm
GENERALS.A.E.METRIC
Air Required4 scfm, 100 psi 113 L/min, 6.9 bar
Coolant Capacity55 gal 208 L
