CNC Turning: Chucker Lathe, 2-Axis

CL-1

CL-1

Product Overview

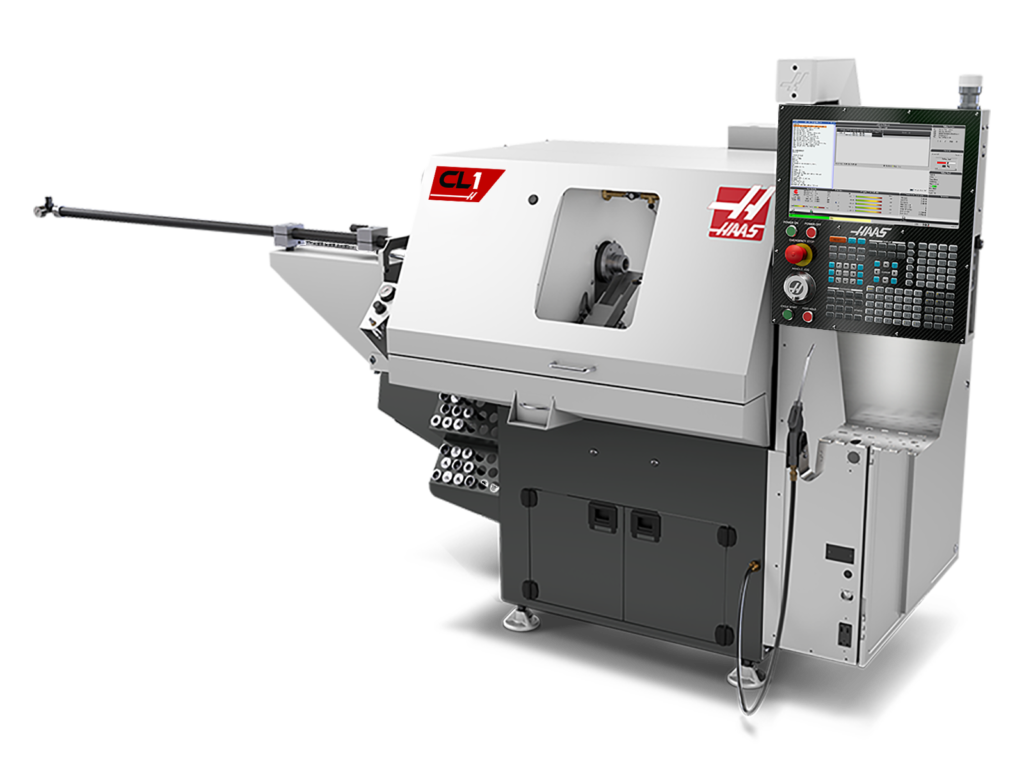

The innovative CL-1 is an ultra-compact CNC chucker lathe that comes standard with an 8-station automatic turret, making it ideal for dedicated small-part production, second-op parts, or short runs and prototyping small parts, such as those found in the communications, aerospace, medical, and dental industries. The CL-1 can be moved easily with a pallet jack or equipment dolly, and is small enough to fit into most freight elevators.

Further Details

Resources


Specifications

CL-1 - Compare to:
CL-1
SWING DIAMETERS.A.EMETRIC
Over Cross Slide11 "279 mm
Over Table4.95 "126 mm
CAPACITIESS.A.EM
Chuck Size (max)4 "102 mm
Max Cutting Diameter5 "126 mm
Bar Capacity1 "25 mm
TRAVELSS.A.EMETRIC
X Axis12 "305 mm
Z Axis8 "203 mm
FEEDRATESS.A.EMETRIC
Max Cutting500 in/min12.7 m/min
Rapids on X757 in/min19.2 m/min
Rapids on Z757 in/min19.2 m/min
AXIS MOTORSS.A.EMETRIC
Max Thrust X1149 lb5111 N
Max Thrust Z1149 lb5111 N
SPINDLES.A.EMETRIC
Spindle Nose5C (collet) Type Nose5C (collet) Type Nose
Drive SystemDirect Speed, Belt DriveDirect Speed, Belt Drive
Max Rating5 hp3.7 kW
Max Speed6000 rpm6000 rpm
Spindle Bore ø1.25 "31.8 mm
TOOLINGS.A.EMETRIC
ToolingGang Style-Any CombinationGang Style-Any Combination
GENERALS.A.EMETRIC
Coolant Capacity13 gal49 L
AIR REQUIREMENTSS.A.EMETRIC
Air Required1 scfm @ 70 psi28 L/min @ 4.8 bar
Inline Air Hose3/8 "3/8 "
Coupler (Air)3/8 "3/8 "
Air Pressure Min40 psi2.8 bar
ELECTRICAL SPECIFICATIONS.A.EMETRIC
Spindle Speed6000 rpm6000 rpm
Drive SystemDirect Speed, Belt DriveDirect Speed, Belt Drive
Spindle Power5 hp3.7 kW
Input AC Voltage (1 Phase)220 VAC220 VAC
Full Load Amps (1 Phase)16 A16 A
Input AC Voltage (3 Phase) - Low220 VAC220 VAC
Full Load Amps (3 Phase) - Low12 A12 A
