Take a Bite Out of Cycle Times – DT-1 high-speed drill and tap machine

The DT-1 high-speed drill and tap machine provides the perfect combination of speed and power to reduce cycle times.

Built on proven Haas designs and technology, the Drill/Tap/Mill high-speed machines provide the perfect combination of speed and power to reduce cycle times.

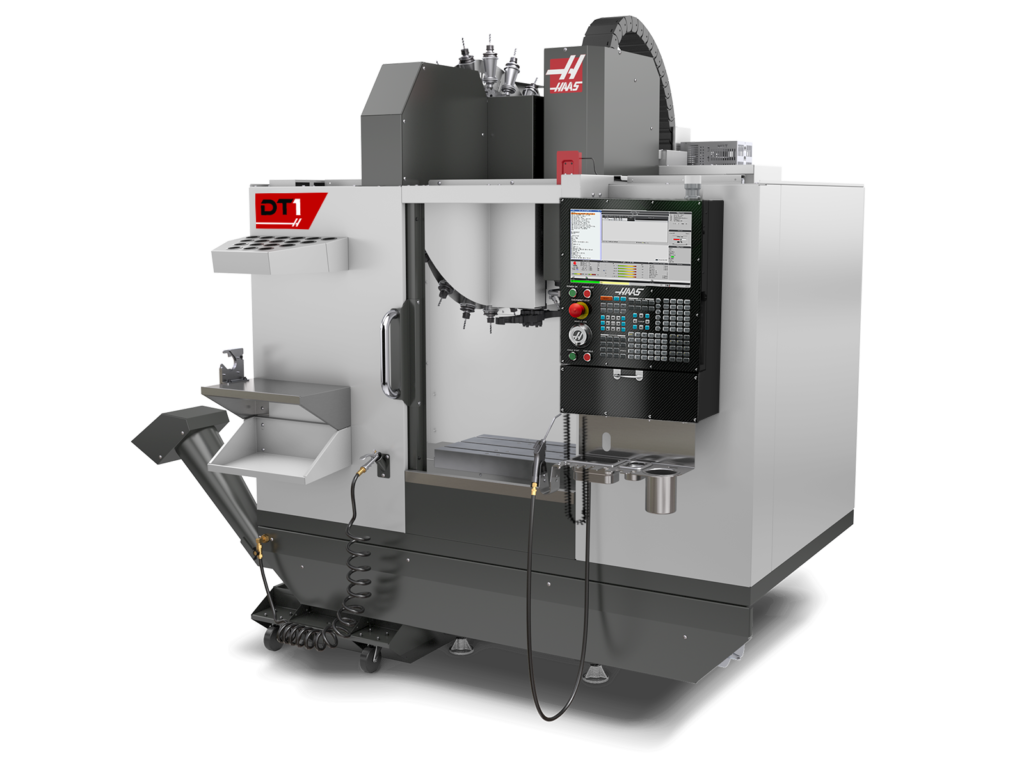

The DT-1 is a compact, high-speed drill and tap machine with full milling capabilities. A powerful BT30 taper inline direct-drive spindle provides 10,000 rpm, and allows high-speed rigid tapping. A high-speed, 20-pocket tool changer swaps tools quickly, while 2400 ipm rapids and high acceleration rates shorten cycle times and reduce non-cutting time.

The DT-1’s lean-style, compact footprint makes very efficient use of valuable shop floor space.

Powerful BT30 taper inline direct-drive spindle
High-productivity machining center with a compact footprint
Made in the USA

Drill/Tap Centre; 508 x 406 x 394 mm, BT30 taper, 15 hp vector drive, 10,000 rpm (12K, 15K & 20k opt.), 61 m/min rapids, high-speed 20+1 side-mount tool changer, power-failure detection module, 1 GB program memory, 15″ colour LCD monitor, USB port, Ethernet interface, memory lock keyswitch, rigid tapping and 170 L flood-coolant system. Anchor kit highly recommended for installation.

Youtube favourites NYC CNC review the DT-2

Haas DT-2 Overview! Let’s walk through machine specs, what we like, why we purchased it to replace the Robodrill, and things to be aware of if you’re considering adding this CNC machine to your shop.

Link to video

Link to DM/DT Series

Wireless Intuitive Probing System

Drastically reduce setup times on your high-speed machine

Automate your high-speed machine’s setup process with the Haas Wireless Intuitive Probing System (WIPS). WIPS is a complete probing package that includes the spindle probe, tool setting probe, and optical machine interface. Powerful software that guides the operator through the job setup process with intuitive, easy-to-use templates. WIPS allows you to quickly and easily define work offset coordinates. Set tool length offsets, and perform in-process inspection, for both part inspection and tool breakage detection.

DT-1 - Compare to

DT-1
TRAVELS	S.A.E.	METRIC
X Axis	20 "	508 mm
Y Axis	16 "	406 mm
Z Axis	15.5 "	394 mm
TABLE	S.A.E.	METRIC
Length	26 "	660 mm
Width	15 "	381 mm
T-Slot Width	5/8 "	16 mm
T-Slot Center Distance	4.92 "	125.0 mm
Number of Std T-Slots	3	3
Max Weight on Table (evenly distributed)	250 lb	113 kg
SPINDLE	S.A.E.	METRIC
Max Rating	15 hp	12,000 rpm (15K & 20k opt.)
Max Speed	12,000 rpm (15K & 20k opt.)	62 Nm @ 1700 rpm
Max Torque	46 ft-lb @ 1700 rpm	Inline Direct Drive
Drive System	Inline Direct Drive	Inline Direct Drive
Taper	BT/30	BT/30
Bearing Lubrication	Air/Oil	Air/Oil
Cooling	Air	Air
SPINDLE (OPT)	S.A.E.	METRIC
Max Rating	15 hp	11.2 kW
Max Speed	20,000 rpm	20000 rpm
Max Torque	16 ft-lb @ 2800 rpm	21.7 Nm @ 2800 rpm
Drive System	Inline Direct Drive	Inline Direct Drive
Tapping	S.A.E.	METRIC
Max Tapping Speed	5000 rpm	5000 rpm
Max Tap Size (aluminum)	1/2 x 13	M12 x 1.75
FEEDRATES	S.A.E.	METRIC
Rapids on X	2400 in/min	61.0 m/min
Rapids on Y	2400 in/min	61.0 m/min
Rapids on Z	2400 in/min	61.0 m/min
Max Cutting	1200 in/min	30.5 m/min
AXIS MOTORS	S.A.E.	METRIC
Max Thrust X	2550 lb	11343 N
Max Thrust Y	2550 lb	11343 N
Max Thrust Y	4200 lb	18683 N
TOOL CHANGER	S.A.E.	METRIC
Type	SMTC	SMTC
Capacity	20+1	20+1
Max Tool Diameter	2.0 "	51 mm
Max Tool Diameter (adjacent empty)	2.0 "	51 mm
Max Tool Length	7.0 "	178 mm
Chip-to-Chip (avg)	1.6 sec	1.6 sec
GENERALS	S.A.E.	METRIC
Air Required	4 scfm, 100 psi	113 L/min, 6.9 bar
Coolant Capacity	45 gal	170 L

Brochure

Manual

Rotary Table Fit Chart
