5-Axis Universal Machining Centres

Universal Machines – 5-Axis Machining for Everyone

The Haas 5-Axis Universal Machining Centre has changed the landscape of the machine tool industry. It has made 5-axis machining simple, affordable, and undoubtably accessible to everyone.

Two machines in one

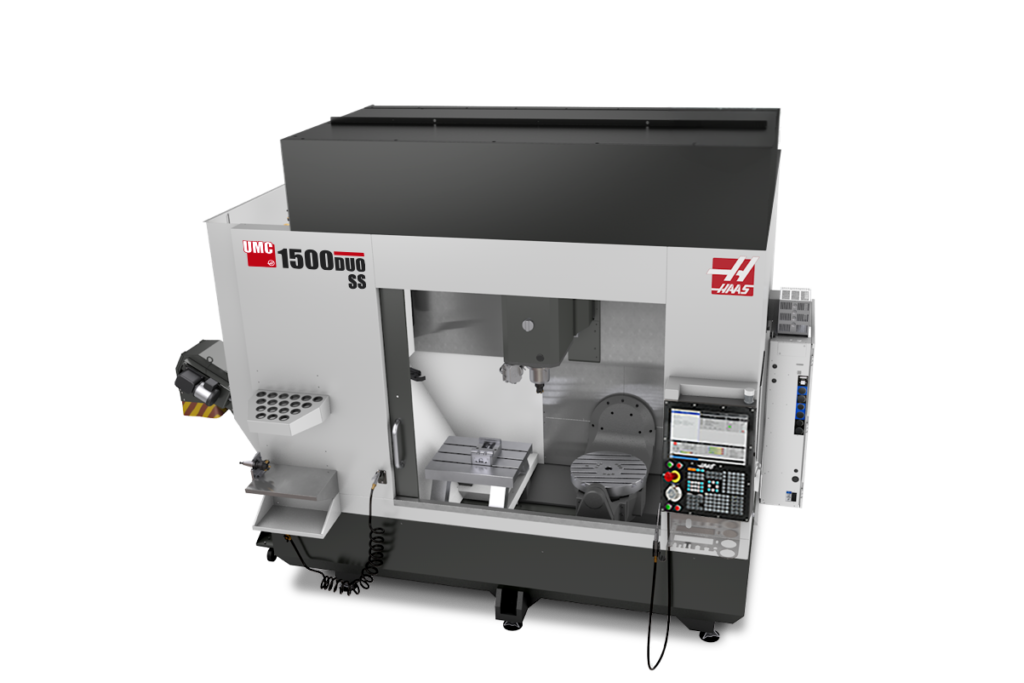

The Haas UMC-1500-DUO is like having two machines in one. A powerful 5-axis universal machining centre is combined with a versatile 3-axis vertical machining centre. We took our industry-leading UMC-750 then expanded its X-axis travel. Furthermore, we added a stationary T-slot table next to the dual-axis trunnion. The UMC-1500SS-DUO is equipped with a faster spindle, high-speed tool changer, and high-speed trunnion table to reduce cycle times and boost productivity.

Use the stationary table to set up workholding for first operations. The stationary table and trunnion platter are at the same height, so you can fixture parts across both. This allows you to use the machine’s full X-axis travel to machine long parts.

5-axis simultaneous machining
Powerful inline direct-drive spindle
Dual-axis trunnion table
Stationary 813 mm x 457 mm T-slot table
Includes Wireless Intuitive Probing System
Made in the USA

The UMC-1500-DUO features a large stationary T-slot table on the left. This allows rigid setups for heavy material removal operations by using standard table vices. Another key point, there is enough room on the table to accommodate two vices. What’s more, the stationary table is also perfect for setting up first operations. Additionally for machining the 6th side of your completed 5-axis parts.

The dual-axis trunnion features standard T-slots together with a precision pilot bore for versatile fixturing.

DWO/TCPC Changes Everything:

Dynamic Work Offsets (DWO) and Tool Centre Point Control (TCPC) are software features in the Haas control. The features make setting up 4-axis and 5-axis jobs as easy as setting up a 3-axis machine. An operator can place the part and fixture anywhere on the machine’s table or platter. They can do this regardless of the location programmed in the CAM system. DWO and TCPC determine the difference between the centres-of-rotation programmed in the CAM system and the centres-of-rotation within the machine and apply appropriate offsets.

Simplifies setup operations
Part and fixture can be placed anywhere on the table/platter
Saves money by eliminating costly workholding
No need to regenerate programs from the CAM system
Makes setting up 5-axis jobs as easy as setting up a 3-axis machine
Includes the Rotary Axis Calibration Tool

UMC-1500-DUO Cutting Demo

Check out this demo of the UMC-1500-DUO’s abilities.

Note: In case you notice the coolant stream seems pretty light in some places. To clarify, we planned it that way to have the cut more visible.

Link to video

Link to Universal Machines

UMC-1500SS-DUO - Compare to

UMC-1500SS-DUO
TRAVELS	S.A.E.	METRIC
X Axis	60 "	1542 mm
Y Axis	20 "	508 mm
Z Axis	20 "	508 mm
Spindle Nose to Table (~ max)	24 "	610 mm
Spindle Nose to Platter (~ min)	4 "	102 mm
TABLE	S.A.E.	METRIC
Length	32.0"	813 mm
Width	18.0"	457 mm
SPINDLE	S.A.E.	METRIC
Max Rating	30 hp	22.4 kW
Max Speed	12000 rpm	12000 rpm
Max Torque	90 ft-lb @ 2000 rpm	122 Nm @ 2000 rpm
Drive System	Inline Direct-Drive	Inline Direct-Drive
Taper	BT or CT 40	BT or CT 40
Bearing Lubrication	Air / Oil Injection	Air / Oil Injection
Cooling	Liquid Cooled	Liquid Cooled
B Axis - Tilt	S.A.E.	METRIC
Travel	+120°, -35°	+120°, -35°
Max Speed	170°/sec	170°/sec
Max Torque	2240 ft-lb	3037 Nm
Brake Torque	2000 ft-lb	2712 Nm
C Axis - Rotation	S.A.E.	METRIC
Travel	360°	360°
Max Torque	1854 ft-lb	8247 Nm
Max Part Swing	27 "	686 mm
Brake Torque	900 ft-lb	1220 Nm
Max Speed	179°/sec	179°/sec
Platter	S.A.E.	METRIC
Platter Diameter	19.70 "	500 mm
Max Weight on Platter	660 lb	300 kg
T-Slot Width	0.630 "	16 mm
T-Slot Center Distance	2.48 "	63 mm
Number of Std T-Slots	7	7
FEEDRATES	S.A.E.	METRIC
Max Cutting	650 in/min	16.5 m/min
Rapids on X	1200 in/min	30.5 m/min
Rapids on Y	1200 in/min	30.5 m/min
Rapids on Z	1200 in/min	30.5 m/min
AXIS MOTORS	S.A.E.	METRIC
Max Thrust X	2750 lb	12233 N
Max Thrust Y	2750 lb	12233 N
Max Thrust Z	3400 lb	15124 N
TOOL CHANGER	S.A.E.	METRIC
Type	SMTC	SMTC
Capacity	30+1	30+1
Max Tool Diameter (full)	2.5 "	64 mm
Max Tool Diameter (adjacent empty)	5 "	127 mm
Max Tool Length (from gage line)	12 "	305 mm
Max Tool Weight	12 lb	5.4 kg
Tool-to-Tool (avg)	2.8 s	2.8 s
Chip-to-Chip (avg)	3.6 s	3.6 s
GENERALS	S.A.E.	METRIC
Coolant Capacity	55 gal	208 L

Brochure

N/A

Manual

Rotary Table Fit Chart
