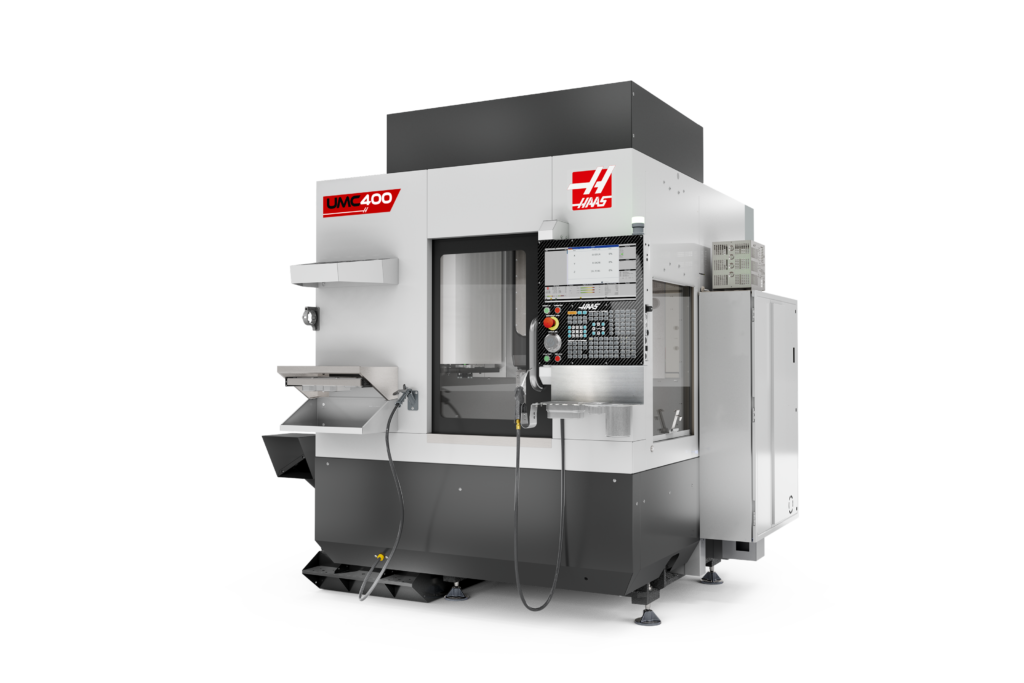

UMC-400

40

TAPER

5

AXIS

10k

RPM

30+1

TOOL CAPACITY

5-Axis Machining Centres For Everyone

What Do You Want to Create Today?

The UMC-400 has a compact footprint and generous travels that make it the perfect fit for smaller shops, or shops doing small-part 5-axis machining.

Using the proven design elements of our existing UMCs, the UMC-400 is sure to be a great performer. Standard features include a 10,000 rpm 40-taper spindle and a 30+1 side-mount tool changer.

All this fits into a compact 2.1 x 2.1 meter footprint. That’s 25% smaller than the ever-popular UMC-500.

  • 5-axis simultaneous machining
  • Powerful inline direct-drive spindle
  • 30+1 side-mount tool changer
  • Includes Wireless Intuitive Probing System

5-Axis Universal Machining Centre; 432 x 279 x 330 mm, with 230 mm Integrated 2-Axis Trunnion Rotary Table, 40 taper, 30 hp Vector Drive, 10,000 rpm (15k opt.) Direct-Drive, 30+1 Side Mount Tool Changer (50+1 opt.) (Servo-Driven High Speed), 22.9 m/min Rapids, Spindle Orientation, Macros, Coordinate Rotation & Scaling, Wireless Intuitive Probing System (WIPS), High-Speed Machining, Programmable Coolant Nozzle, Chip Conveyor, Dynamic Work Offsets (DWO), Tool Centre Point Control (TCPC), Second Home Button, Colour Remote Jog Handle, Power-Failure Detection Module, 1 GB Memory, 15″ Colour LCD Monitor, USB Port, Memory Lock Keyswitch, Rigid Tapping and 208 litre Flood Coolant System.

UMC-400 • 5-Axis Universal Machining Centre

The UMC-400 has the capability of the larger UMC models and it fits into a compact 2.1 x 2.1 meter footprint. That’s 25% smaller than the ever-popular UMC-500. Also, see the Super Speed UMC-400SS here.

5-Axis Made Easy – Parts 1, 2 and 3

1: Senior applications engineer John Nelson explains why 5-axis machining is much simpler than it has ever been before, furthermore why any shop can be a 3+2 or 5-axis shop.

2: John explains how to make the correct choice when choosing your machine and rotary combination.

3: He talks about setting up your rotary table or trunnion, as well as explaining how the Dynamic Work Offsets and Tool Centre Point Control makes multi-axis work more straightforward than ever.

Link to video



UMC Auto Parts Loader for 5-Axis Universal Machining Centre

Automate Your Part Production on Small UMCs

The Haas Automatic Parts Loader is a simple and affordable way to automate part production. What’s more it’s designed and built exclusively for the Haas UMC-400 & UMC-500 series. For simplicity, it connects directly to the Haas control.

  • All-inclusive design, with plug-and-play capabilities
  • Interfaces directly with the Haas control
  • Accommodates parts up to 6″ length x 6″ width x 10 lb
  • Includes light curtain for safe operation
  • Made in the USA
